Drainage systems are often out of sight and out of mind, until problems arise. The slightest leak or clog quietly expands into a huge inconvenience, leading to property damage, stinky odors, and costly repairs. The old ways of trial-and-error excavation take a long time, get messy, and provide inaccurate results.

That’s where the latest technology comes into play. A pipe CCTV survey offers a simple, non-destructive means of locating hidden leaks and blockages, providing a cheap solution for homeowners and companies. Let us take a closer look at how this technology operates and the means by which it identifies problems within your pipes.

What does a Pipe CCTV Survey involve?

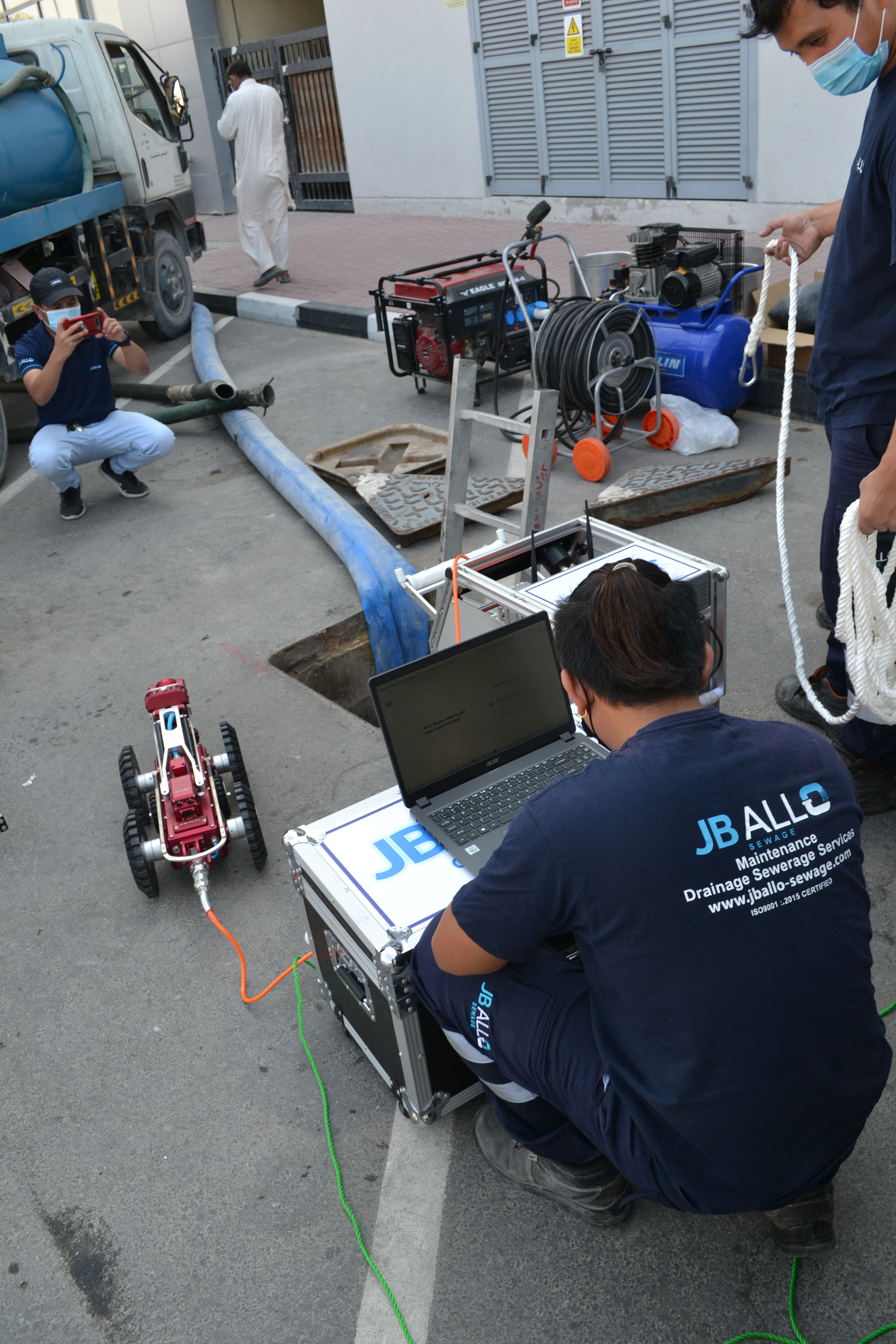

A pipe CCTV survey makes use of a waterproof high-definition camera, which comes with a flexible cable or robotic crawler, used for seeing the insides of the pipes. The real-time video image appears on a monitor from which the technicians may see the condition of your drainage system.

The survey records video evidence, maps pipe courses, and reveals trouble spots with meticulous exactness. It affords the ultimate means of seeing what happens underground without excavating.

How CCTV Surveys for Hidden Blockages Work

One of the principal causes of drainage problems is the formation of blockages; a drain survey can identify them by a variety of means. By providing technicians with a clear, internal view of the pipe, it allows for spot diagnosis and successful repairs.

1. Sights for Spotting Debris and Grease Accumulation

The camera shows images in real time of the grease deposits, silt matting, or foreign matter, such as wipes or toys, which tend to cause obstruction. As opposed to surface inspections, CCTV allows the operators to decide if the obstruction may be removed by jetting or not.

2. Root Intrusion Detection

Moisture draws tree roots, which invade pipes through small cracks or joints, gradually worsening the situation due to the restriction. The operators using a CCTV drain camera survey in Dubai or nearby regions can see not only the first signs of root ingress but also the measurement of its extent. Early detection helps prevent costly excavation and prolonged pipe failure.

3. Detecting Collapsed or Out-of-Place Sections

Soil movement, construction work, or aging structures can cause damaged spots or misaligned joints of drainage pipes. The structural flaws are usually not surface apparent, but could entirely halt the movement of water. A pipe CCTV survey identifies these flaws so engineers can specify permanent repairs such as relining or section renewals rather than temporary cleaning.

4. Identifying Points of Repeat Blockage

If you get frequent clogs in the same area, the survey provides the exact location of repeat problems. This eliminates unnecessary guessing and guarantees that correction work, such as a faulty section’s replacement or readjusting gradient flow, is made for a long-term fix instead of repeated short-term cleanings.

How CCTV Surveys Detect Invisible Leaks

Leaks are often harder to detect than clogs, but they also may cause more long-term damage by corroding foundations, creating moisture, or providing an opportunity for mildew growth. A local CCTV drain survey in Dubai or other cities allows the level of detail necessary for the early and effective detection of these subsurface leaks.

1. Detection of Fracture and Cracks

Over time, pipes may develop tiny cracks from wear, pressure, or ground movement. Hairline cracks may ooze water slowly but continuously, going unnoticed until severe damage takes place. A CCTV camera enlarges these defects on the monitor, enabling one to identify even the minutest points of escape and undertake correction before the situation gets out of hand.

2. Joint Misalignment Detection

Small gaps may develop when pipes change position due to movement of the soil, differential temperatures, or faulty installation. Such misalignments tend to be points of leakage. Using high-resolution imaging, the technicians identify these points of vulnerability, determine if the joint may be sealed, or if the best long-term safe choice would be a replacement.

3. Water Ingress Detection

Not infrequently, the problem isn’t that water leaks out of the drainage system; it’s an allowance for ground seepage through damaged walls or joints into the drainage system. Such a nuisance will cause pressurization in the drainage system, contaminating it and, most significantly, may cause flooding when there is heavy rain. All these ingress points will be highlighted by CCTV surveys, which can be waterproofed or relined to restore their integrity.

4. Damp or Corrosion Area Location

Through a detailed examination of the interior of the pipe, CCTV cameras may identify indicators of corrosion, mineral encrustation, or spots that are continually soggy. These spots are usually early indicators of active or evolving leaks. Detection of these spots allows for pre-emptive maintenance, halting small problems before they translate into significant water loss or structural hazard.

Why CCTV Surveys Are Safer

Unlike guesses or eyeballing questionnaires, a pipe CCTV survey offers:

• Accuracy: Pinpoints the problem’s exact location.
• Evidence: Video recordings you can watch and share with the contractors.
• Non-Invasive Exploration: Your gardens and floors need not unnecessarily be dug up.
• Cost-Effective Maintenance: Fix the root cause instead of employing quick repairs.

When Do You Need a Drain Survey?

Order a CCTV drain camera survey in Dubai and surrounding cities if you observe:

• Repeat clogging or slow draining.
• Odors from sinks or toilets.
• Odd spots of moss or sinkholes.
• You are purchasing a new home and would not like surprises.
• Recent structures around your drainage system.

A pre-emptive survey prevents emergencies and ensures peace of mind.

JB Allo Sewage: Your One-Stop Drainage Partner

At JB Allo Sewage, our specialty includes CCTV drain camera surveys in Dubai and all over the UAE, providing precise identification of latent clogging and leakage. With over 25 years of experience in Europe and the UAE, we use state-of-the-art cameras equipped with LED lighting, sondes, and pan-tilt features to identify every issue, from root intrusion to collapsed sections.

What sets us apart is our whole service strategy. Once inspected, we are able to provide instant solutions like high-pressure jetting, pumping, and relining. Our comprehensive video reports provide customers with a clear view of the health of their drainage and sensible repair advice. Whether you own a home, a company, or a real estate development company, JB Allo Sewage makes your drainage facilities safe, operational, and up-to-date. Contact JB Allo Sewage to learn more about how we can help.
